Scope and field context
Project scope and field context

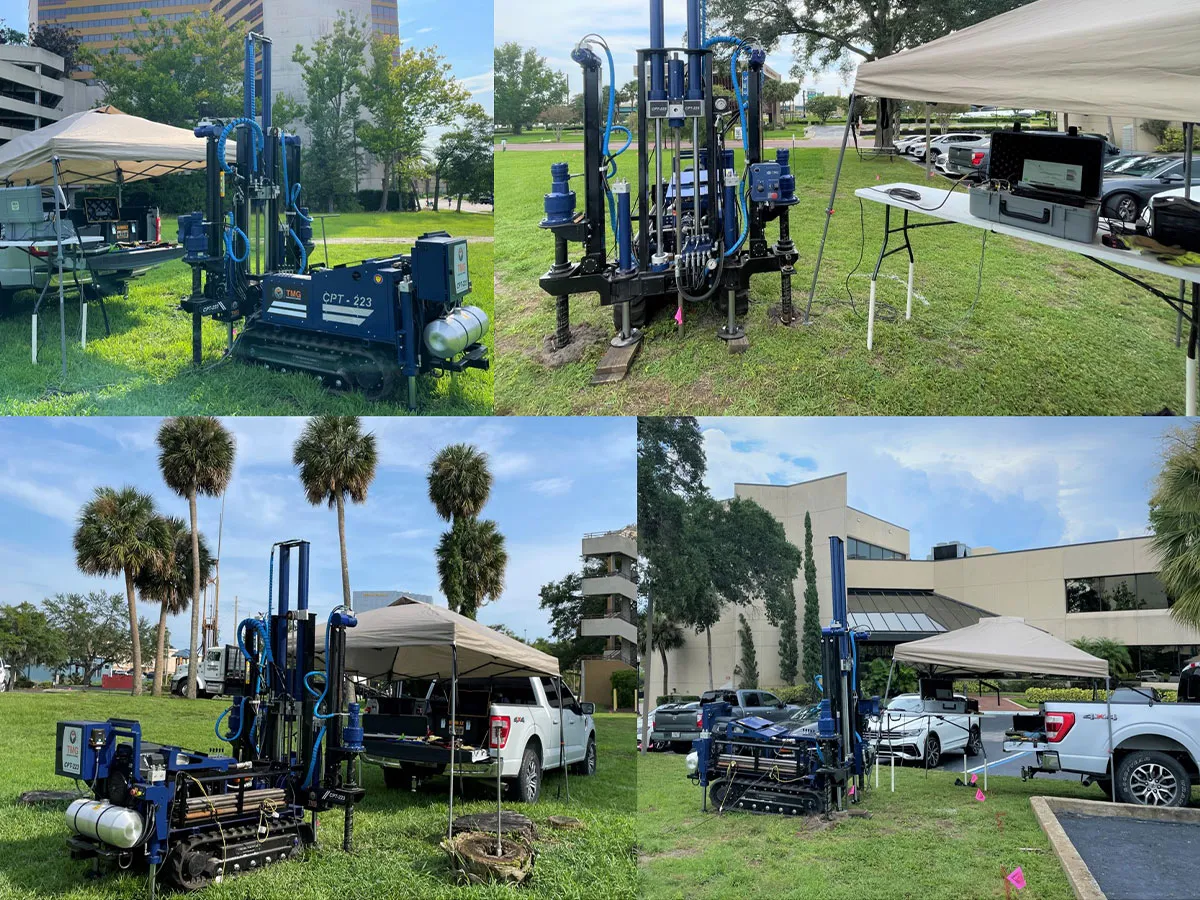

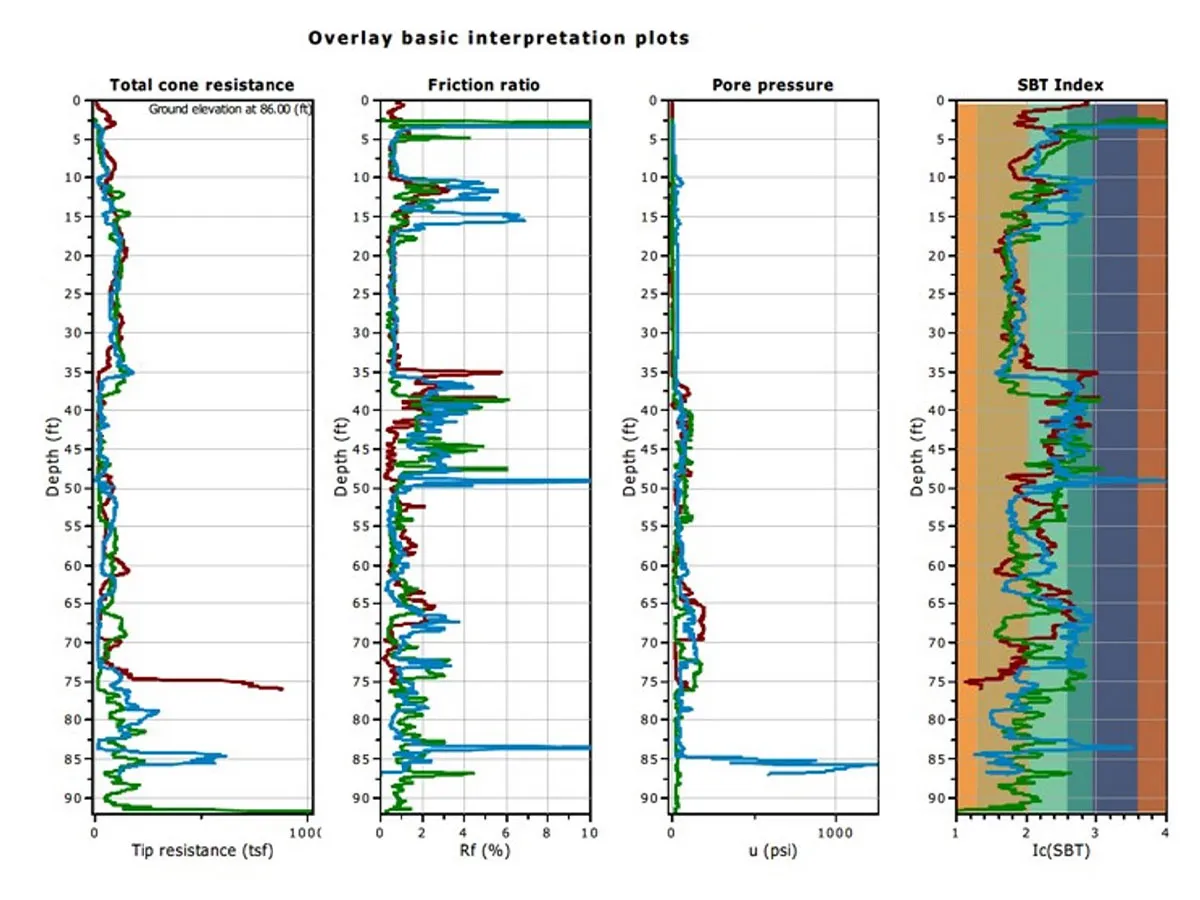

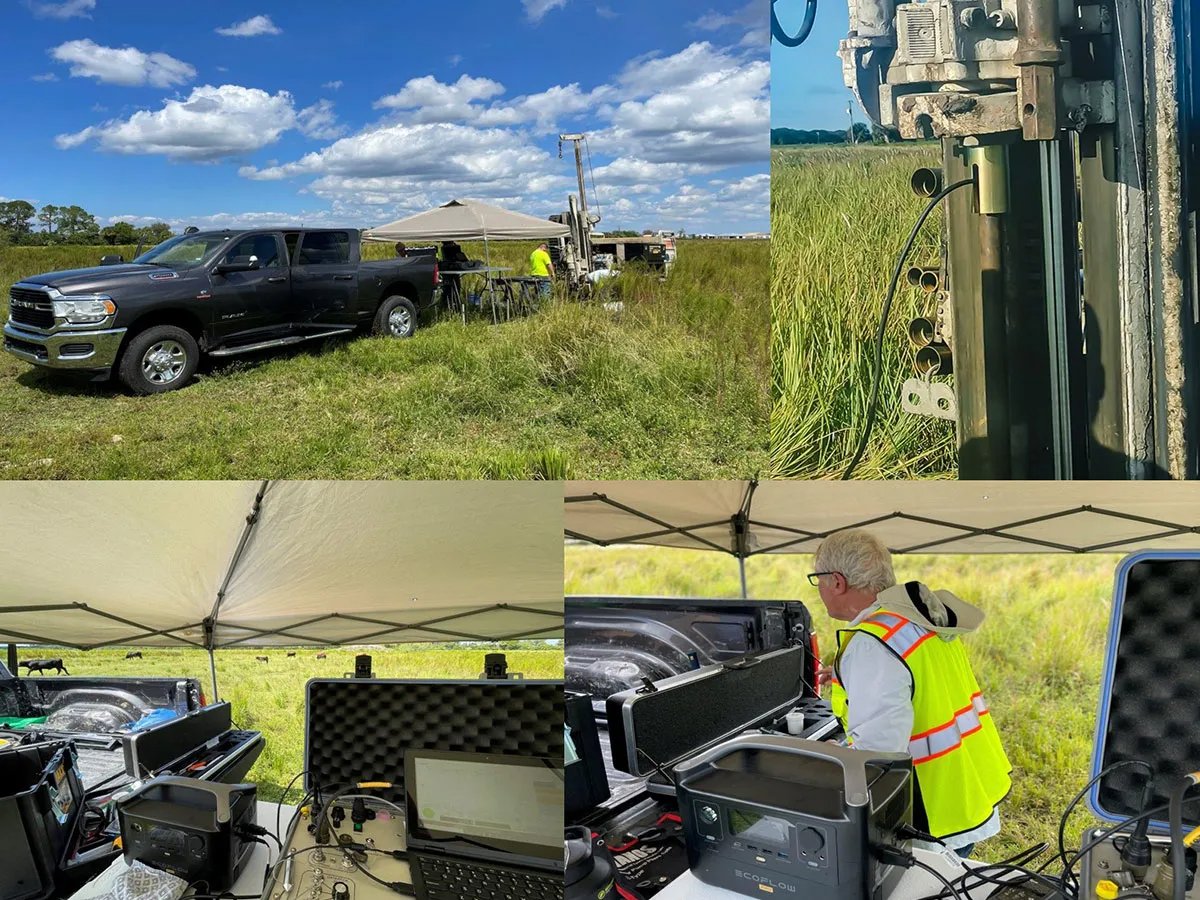

ATI Geologica completed five (4) Cone Penetration Tests to a depth of 30 feet to refusal to delineate soil stratigraphy. The tests were performed using a TMG CPT-223 anchored using two helical anchors. An electronic piezocone manufactured by Vertek was advanced at a rate of approximately 2 cm/s. The data was recorded using the Vertek DataPack and their proprietary software, CPTSND. The data was then processed using Vertek’s Coneplot to obtain the raw data and basic graphs and tables. This Factual report summarizes the results of the cone penetration testing, including highlights and a more comprehensive evaluation of the results using GeoLogismiki CPeT-IT, a proprietary software written in collaboration with Dr. Peter K. Robertson. The CPeT-IT software has the advantage of being able to combine similar soil layers and produce a summary table of soil properties for these layers Three (3) cone penetration test soundings were undertaken, the fourth (CPT-04) has been postponed due to bending of the cone and friction reducer rod at the base of CPT-03.
